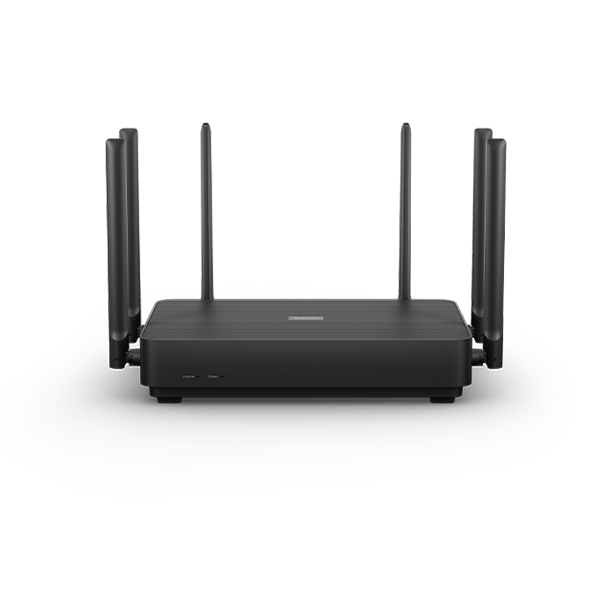

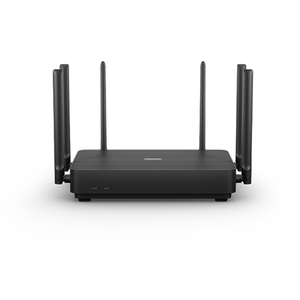

Xiaomi Router AX3200

• L×W×H (per unit)

  Product color

• 284mm × 186mm × 186mm

  Black

Hardware configuration

• Processor

  MediaTek Filogic800 Dual-core A53 1.35GHz CPU

  Memory

  256MB

  2.4G Wi-Fi

  4×4 (supports up to IEEE 802.11n protocol, the theoretical maximum rate is 800Mbps)

  5GHz Wi-Fi

  4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)

  Antennas

  External omnidirectional antennas

  Total ports

  10/100/1000Mbps adaptive WAN port (Auto MDI/MDIX) ×1
  10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX) ×3

  LED indicator light

  2 lights, incl. System indicator × 1, Internet indicator × 1

  System reset button

  ×1

  Mesh networking button

  ×1

  Power input port

  ×1

  Protocol standards

  IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab

Wireless specifications

• Dual-band

  2.4GHz, 5GHz

  Modulation

  11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)



  11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps)



  11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.256QAM.



  11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.



  11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.

Software specifications

• Operating system

  MiWiFi ROM, a smart router operating system based on OpenWRT

  WiFi Encryption

  WPA-PSK/WPA2-PSK/WPA3-SAE encryption

  Management applications

  Supports Web, Android, iOS

Working Environment

• Working environment Temperature

  0-40℃

  Operating humidity

  10%-90%RH (non-condensing)

  Storage temperature

  -40-70℃

  Storage humidity

  5%-90%RH (non-condensing)

Package contents

• Xiaomi Router AX3200 ×1

  User Manual ×1

  ​

  Power cord ×1

  Network cable ×1

  ​
