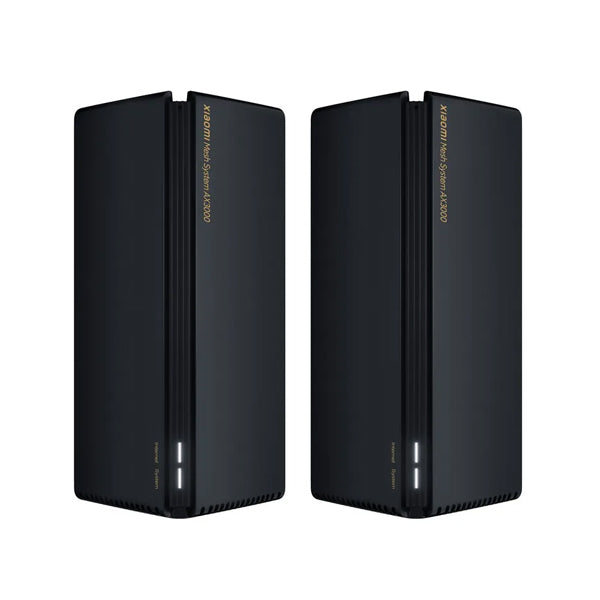

Xiaomi Mesh System AX3000 (2-Pack)

• Processor: Qualcomm® IPQ5000 Dual-core A53 1.0GHz CPU
• Network processing unit: Single core 1.0GHz NPU
• Memory: 256MB
• 2.4G Wi-Fi: 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 574Mbps)
• 5GHz Wi-Fi: 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)
• Antennas: High gain antennas
• Heat dissipation: Natural heat dissipation
• Total ports:
• 1×10/100/1000Mbps self-adaptive WAN port (Auto MDI/MDIX)
• 3×10/100/1000Mbps self-adaptive LAN ports (Auto MDI/MDIX)
• LED indicator light: 2 lights, System indicator × 1, Internet indicator × 1
• Protocol standards: IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab

Wireless Specification:

• Dual Band: 2.4GHz, 5GHz
• Modulation: 11b：
• DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
• 11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),
  64QAM(48/54Mbps)
• 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM. Data rate：MCS0-MCS15
• 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
• 11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
• Data rates: MCS0-MCS11 (supports 2 streams).

Software Specifications:

• Operating system: MiWiFi ROM, a smart router operating system based on OpenWRT
• WiFi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, Wireless access control (black and white list), SSID hidden
• Management applications: Supports Web, Android, iOS

Working Environment:

• Working environment Temperature: 0-40℃
• Operating humidity: 10%-90%RH (non-condensing)
• Storage Temperature: -40-70℃
• Storage humidity: 5%-90%RH (non-condensing)
