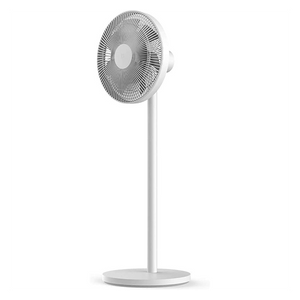

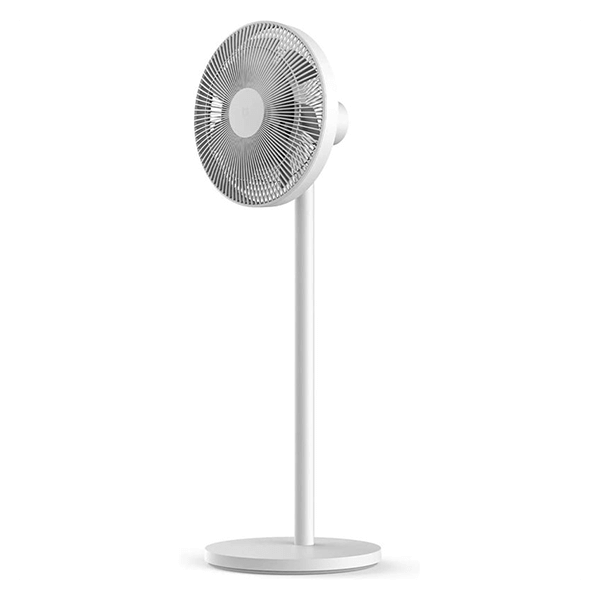

Mi Smart Standing Fan 2
Dual blades for a natural breeze
Dual blades
Surround yourself with a natural breeze
DC motor
Reducing power consumption
Voice control
Turn it on with a single command
140° ventilation
Cools the whole room
14m* range
Long-range ventilation
100 levels
Fine wind speed adjustment
Table and floor
Place it wherever you like
Silent all night
Noise as low as 30.2 dB(A)*
Double natural breeze, all around cooling
Dual blades
Natural breeze-
simulating
algorithm
DC inverter
7+5 wing-shaped blades
The secret to a gentler breeze
The two layers of fan blades rotate simultaneously, increasing airflow for more
powerful cooling. With its wider reach, the dual blades also provide a more gentle
three-dimensional breeze.
Precise speed settings*
24-hour preset for different needs
Switch between natural breeze or direct blow. Set the fan speed to
anywhere between 1 and 100 in the Mi Home app, to achieve your
desired airflow.*
Switch between natural breeze or direct blow. Set the fan speed to anywhere between 1 and 100 in the Mi Home app, to achieve your desired airflow.*
DC motor
Only 1kWh for an entire summer*
The fan uses a DC copper-wire motor, which has higher operating efficiency and longer service life than an aluminium-wire motor. It provides constant speed for more stable ventilation and lower power consumption. Its wing-shaped blades produce a maximum air flow of 20m³/min*.
1 kWh can last an entire
summer on speed level 1*
10 kWh can last more than
an entire summer on
speed level 4*
10 kWh can last more than
an entire summer on
speed level 4*
Operate however you like Supports voice control
Switch between natural breeze or direct blow. Set the fan speed to anywhere between 1 and 100 in the Mi Home app, to achieve your desired airflow.*
Versatile usage
Perfect for any room
Press the single button to easily adjust the
height of the stand. Place it on top of a table or on the floor.
Ultra-wide angle 140° ventilation*
Increase airflow
Adjustable wide-angle ventilation with a maximum range of 14m to cool the room for the whole family.
140°
Horizontal rotation*
39°
Up and down tilt*
Keeping the room both cool and quiet
With its smooth-running brushless DC motor and dual fan blades, the fan has been optimized to deliver an exceptionally quiet and disturbance-free experience.
30.2dB(A)*
Minimal operating noise
55.8dB(A)*
Maximum noise level of airflow
50–60 dB(A)*
Indoor conversation
40–50 dB(A)*
Rain patter
30–40 dB(A)*
Quiet library
Every detail has been rigorously tested
The fan has undergone rigorous testing to ensure reliability. The fan endured:
5000
horizontal head rotations
1000
up and down tilt adjustments
5000
horizontal head rotations
1000
up and down tilt adjustments
Easy 6-step assembly
1. Press one button to quickly add or remove the extension tube
2. Easily remove the washable cover to clean it
3. Rotation damper for smoother adjustment
4. Use the child lock function to prevent children from changing the settings
*14m maximum ventilation range: Data supplied by Xingyue Research Laboratory. In natural-breeze mode on level 4, at a distance of 14m, the wind speed measured 0.38 m/s. Report no.: XYYF-20-0416-2.
*30.2 dB(A) minimal operating noise: Data supplied by China Household Electric Appliance Research Institute (CHEARI). The noise level generated used natural-breeze mode on level 1 without head rotation producing 30.2 dB(A). Report no.: WS1-20-069.
*100-level speed settings: Can be controlled via the Mi Home app. Only the direct-blow mode is supported. Speed levels corresponding to those on the fan: Level 1 on the fan is equivalent to speed 1 in the app. Level 2 on the fan is equivalent to speed 35 on the app. Level 3 on the fan is equivalent to speed 70 on the app. Level 4 on the fan is equivalent to speed 100 on the app.
*24-hour preset: Go to the Mi Home app fan plug-in > More > Settings> Preset power on/off to set for up to 7×24 hours..
*Switch between airflow modes and speed levels: Go to the Mi Home app fan plug-in > More > Settings > Smart scene to switch between "natural breeze" and "direct blow" and adjust the speed to your liking.
*1kWh lasting an entire summer: In direct-blow mode, output on level 1 is 1.4 W. This data is supplied by China Household Electric Appliance Research Institute (CHEARI). Calculating based on 8 hours of operation per day, the consumption over an entire summer using direct-blow mode on level 1 without head rotation: 1.4 W×8 hours÷1000×90 days=1.008 kWh. Report no.: WS1-20-041.
*Maximum airflow of 20m³/min: Data supplied by China Household Electric Appliance Research Institute (CHEARI). In direct blow mode, the air flow on level 4 is 20m³/min. Report no.: WS1-20-029.
*10 kWh lasting an entire summer on level 4: In direct-blow mode, output on level 4 is 13.8 W. This data is supplied by China Household Electric Appliance Research Institute (CHEARI). Calculating based on 8 hours of operation per day, the consumption over an entire summer using direct-blow mode on level 4 without head rotation: 13.8 W × 8 hours ÷ 1000 × 90 days = 9.936 kWh. Report no.: WS1-20-029.
*The Mi Smart Standing Fan 2 has a rated power as low as 15W. Compared to the Mi Smart Standing Fan, which has a rated power of 32W, it can save energy by more than 53%.
*About 53% more efficient compared to an AC motor: The Mi Smart Standing Fan 2 has a rated power as low as 15W. The test data is calculated under the conditions set forth in "DC Dual Blade Fan" (Q/ZXYDQ 010-2020). Compared to Mi Smart Standing Fan 2 Lite, which has a rated power of 38W, the Mi Smart Standing Fan 2 can save energy by more than 60%.
*In order to use Amazon Alexa and Google Assistant voice control the fan needs to be linked to a smart device that supports smart voice control. Such devices need to be purchased separately.
* 140° horizontal rotation and 39° up and down tilt; 30°, 60°, 90°, 120° and 140° head rotation angles can be selected in the Mi Home app; tilt (23° upwards and 16° downwards) must be set manually; data supplied by Xingyue Research Laboratory, report no. XYY-20-0416-1.
*14m long-range ventilation: Data supplied by Xingyue Research Laboratory. In direct blow mode on speed level 4, the wind velocity at a 14m distance is 0.38 m/s. Report no.: XYYF-20-0416-2.
*55.8 dB(A) maximum noise level of air flow: Data supplied by the China Household Electrical Appliance Research Institute (CHEARI). The noise level was tested using direct-blow mode on level 4 without head rotation. Report no.: WS1-2—029.
* 30–60 dB(A) noise level refers to daily sound range: Data quoted from the American Academy of Audiology document — "Levels of Noise".
*Amazon Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.
Mi Smart Standing Fan 2
Specs
-
Product name
Mi Smart Standing Fan 2
Model no.
BPLDS02DM
Dimensions
343 × 330 × 1000mm
Weight
3kg
Airflow
20m³/min
Noise emission
≤58dB(A)
Rated frequency
50/60Hz
Rated voltage
100–240V
Rated power
15W
Model Authorization Number
CMIIT ID 2017DP7231 Radio transmission module
Package contents
-
Extension pole x1
Base x1
Fan blade knob x1
Rear hood knob x1
Motor + Body x1
Fan components x1 (front cover, fan blades, rear cover)
Special wrench x1
Fan cover screw x1
Power cord x1
Instruction manual x1
