Dimensions
-
Dimensions (unfolded)
Dimensions (folded)
Basic Specs
-
Product model number
DDHBC05NEB
Range
30km
Gradeability
14%
Rated power
250W
Tires
8.5" front and rear
pneumatic tiresController current limit
17A±0.5A
Max. load
100kg
Rider age
Age 16-50
Storage temperature
-20°C to 45°C
Charging time
5.5 hours
-
Max. speed
25km/h (Max speed for each mode: Pedestrian mode: 5km/h; D: 20km/h; S: 25km/h)
Weight
12.5kg
Braking
E-ABS and disc brake
Max. power
500W
Controller undervoltage
protection29V±0.5V)
Motor type
Brushless DC motor
Rider height
120cm-200cm
Working temperature
-10°C to 40°C
IP-rating
IP54
Battery specs
-
Battery type
Lithium ion battery
Rated capacity
7650mAh/275Wh
Maximum charging
voltage42VDC
Discharge temperature
range-20°C~+50°C
Cyclical lifetime
500 charging cycles with power
maintained above 70%
-
Battery model
NE1003-H
Rated voltage
36VDC
Charging temperature range
0°C~+40°C
Battery weight
1.6kg
Adapter specs
-
Output power
71W
Output current
1.7A
Output voltage
42V
DC cable port type
Custom Φ8.0*1.6mm
-
Input current
2A MAX
Input voltage
100-240VAC 50/60Hz
DC cable length
2m
Package contents
-

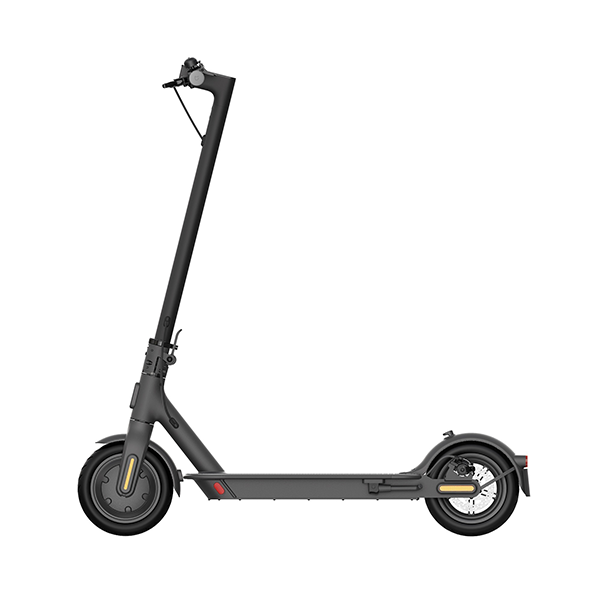

Mi Electric Scooter 1S x1
Power adapter x1
Hexagon wrench x1
Extended nozzle adapterX1
Screws x5
Tire x 1
User manual
Important information
Specifications
